15噸新款雙軌鋼絲繩葫蘆
1.low noise
2.highly reliable breaking system
3.hoisting motor with a thermal protector
4.Efficient maintenance

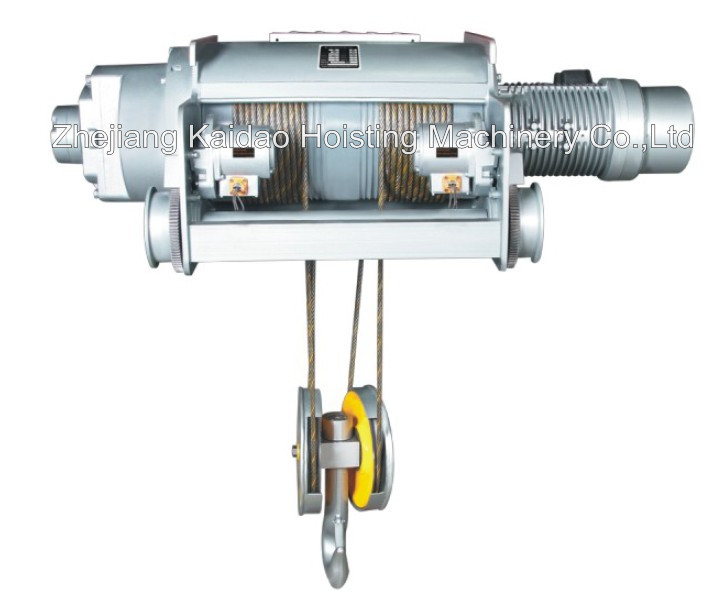

15T electric wire rope hoist with double rail type trolley
The double rail hoist is ideally employed as an overhead traveling crane,Since the self-adjusting centre core is adopted,the wheels closely follow the rails and are hard to derail during
operation.The compact,dustproof structure occupies minimal space and requires less
maintenance.Installation cost can be reduced.
Technical Parameter
Modle/型號 | HKDD1504 |
Capacity/起重量(T) | 15 |
Lifting height/起升高度(M) | 9/12 |
Hoisting lifting speed/起升速度(m/min) 50HZ | 5 |
Hoisting lifting speed/起升速度(m/min) 60HZ | 6 |
Lifting motor power/功率 (kw) 50HZ | 6.7*2 |
Lifting motor power/功率 (kw) 60HZ | 8*2 |
No. of poles/極數 | 4 |
Traversing speed/跑車速度 (m/min) 50HZ | 14 |
Traversing speed/跑車速度 (m/min) 60HZ | 17 |
Motor power (kw)/功率 50hz | 0.45*2 |
Motor power(kw)/功率 60hz | 0.55*2 |
No. of poles/極數 | 4 |
wire rope falls/鋼絲繩數 | 4 |
wire rope composition/繩索組成 | 6xFi(29)-B |
Wire rope dia.(mm)/繩索直徑 | Φ20 |
Operating method/操作方式 | Push-botton operation |
Electric source (3 phase)/電源 | 200-600V 50Hz/60Hz |
